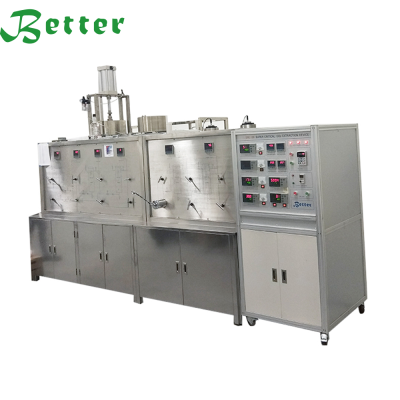

เครื่องสกัดสารสำคัญ Supercritical CO₂ Extractor ขนาด 15 - 100 ลิตร
SKU : SHB-SFE-M-001
รายละเอียดสินค้า
General Information:
- This system is multi-function SCFE equipment, the working mode is intermittent or continuous way to extract solvent from solid or liquid material, the additive can be add to the
supercritical fluid;
- The system has one or two extractors and separators;
- Designed pressure of extractor is 40Mpa, max working pressure is 35Mpa, max working
temperature is 75;
- The design of pressure vessels is according to the related national standard and rule demand and
with over pressure protection system which means enough safety;
- The material of extractors, separators, pipe and fitting, etc is all stainless steel 304.
- Safety protection device:
1. High-pressure pump outlet distribution contact pressure gauge, set the working pressure, overpressure automatic pump shutdown protection.
2. Extraction kettle, separation kettle, etc. according to the highest working pressure, respectively with safety valve, overpressure automatic pressure relief protection.
- This system is multi-function SCFE equipment, the working mode is intermittent or continuous way to extract solvent from solid or liquid material, the additive can be add to the
supercritical fluid;
- The system has one or two extractors and separators;
- Designed pressure of extractor is 40Mpa, max working pressure is 35Mpa, max working
temperature is 75;
- The design of pressure vessels is according to the related national standard and rule demand and
with over pressure protection system which means enough safety;
- The material of extractors, separators, pipe and fitting, etc is all stainless steel 304.
- Safety protection device:
1. High-pressure pump outlet distribution contact pressure gauge, set the working pressure, overpressure automatic pump shutdown protection.
2. Extraction kettle, separation kettle, etc. according to the highest working pressure, respectively with safety valve, overpressure automatic pressure relief protection.
